- Certificate / Product Information -
RAVENOL VPD SAE 5W-40
Diesel-Fullsynth
Pumpe-Düse
RAVENOL VPD SAE 5W-40 is a high performance fully synthetic “mid SAPS” oil based on the most modern synthesis technology, especially developed for engines of the new TDI generation. It has excellent cold start characteristics, saves fuel and resists high temperatures for example at the turbo charger.
RAVENOL VPD SAE 5W-40 is recommended for VW diesel engines with “Pumpe-Düse-System” according to VW 505 01.
Application Notes
RAVENOL VPD SAE 5W-40 guarantees operational safety for all driving conditions for example: extreme stop and go traffic as well as high speed highway trips.
RAVENOL VPD SAE 5W-40 is miscible respectively compatible with all trademark single-grade and multigrade engine oils.
Quality Classifications
Specifications
API SM/CF, ACEA C3
Approvals
VW 505 00 / 505 01, VW 502 00
Practice and tested in aggregates with filling
MB 229.51, Ford WSS M2C 917A, BMW Longlife-04, Porsche, Fiat 9.55535-GH2, Chrysler MS-11116
Characteristic
RAVENOL VPD SAE 5W-40 offers:
- Recommendation for VW diesel engines with “Pumpe-Düse-System” according to VW 505 01
- MID SAPS = reduced sulfated ash, phosphorus and sulfur
Fastest lubrication time and fastest time filling of the bucket tappet that means no cold start rattling - Respectively cold start corrosion
- Highest wear protection at all flexible parts like valve actuating device, camshaft and piston rings
- even under permanent full load trips
- No deposits in combustion chambers in the piston ring zone, and on valves by a solid product.
- Neutrality towards sealing materials.

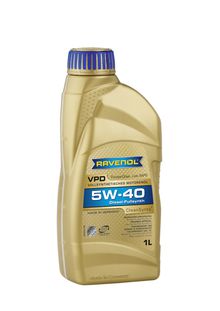

![RAVENOL VPD SAE 5W-40 RAVENOL VPD SAE 5W-40](../../../../../../../typo3temp/pics/d67699ed9f.jpg)
Article number: 1111131
Packages:
1 L|1111131-001-01-999
4 L|1111131-004-01-999
5 L|1111131-005-01-999
20 L|1111131-020-01-999
60 L|1111131-060-01-999
208 L|1111131-208-01-999
1000 L|1111131-700-01-999
Characteristics | Unit | Data | Audit |
---|---|---|---|
Colour | yellow brown | visual | |
Density at 20°C | kg/m³ | 848 | EN ISO 12185 |
Viscosity at –30°C | mPa.s | 5500 | ASTM D5293 |
Viscosity at 40°C | mm²/s | 83 | DIN 51 562 |
Viscosity at 100°C | mm²/s | 13,8 | DIN 51 562 |
Viscosity index VI | 171 | DIN ISO 2909 | |
Flash point (COC) | °C | 242 | DIN ISO 2592 |
Pourpoint | °C | -39 | DIN ISO 3016 |
TBN | mg KOH/g | 7,7 | ISO 3771 |
All indicated data are approximate values and are subject to the commercial fluctuations.
All information correspond to the best of our knowledge to the actual situation of the cognitions and our development. Subject to alterations. All references made to DIN-norms are only for the description of the goods. There is no guarantee. In case there will be any problems please contact the technical service.
