- Certificate / Product Information -

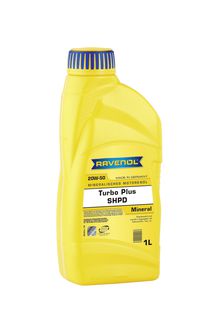

RAVENOL Turbo Plus SHPD SAE 20W-50

RAVENOL Turbo Plus SHPD 20W-50 is high performance multi-grade oil for use in petrol and diesel engines including turbo versions.

RAVENOL Turbo Plus SHPD 20W50 meets the requirements of SAE-Class 20W-50. This adjustment of viscosity also ensures a good lubricating film at high temperatures.

Application Notes

RAVENOL Turbo Plus SHPD 20W-50 is particularly suitable for engines with already high performance.

Specifications

ACEA E7, A3/B4, API CI-4/SL

Practice and tested in aggregates with filling

MAN 3275, MB 228.3, MTU Type 3, VOLVO VDS-3, Cummins CES 20071, 72, 76, 77, Renault RLD, Caterpillar TO-2

Characteristic

RAVENOL Turbo Plus SHPD 20W-50 offers:

  • A good shear stability
  • Very high oxidation stability
  • Excellent viscosity-temperature behaviour
  • Conclusive detergent- and dispersant properties
  • High security reserves also under limited lubrication circumstances
  • Excellent cold start properties
  • Prevents black sludge formation
  • Suitable for catalyst-equipped vehicles
RAVENOL Turbo Plus SHPD SAE 20W-50

Article number: 1123120
Packages:

1 L|1123120-001-01-999

5 L|1123120-005-01-999

10 L|1123120-010-01-999

20 L|1123120-020-01-999

60 L|1123120-060-01-999

208 L|1123120-208-01-999

1000 L|1123120-001-06-999

Characteristics Unit Data Audit
Colour braun visual
Density at 20°C kg/m³ 886 EN ISO 12185
Viscosity at 40°C mm²/s 150,0 DIN 51 562
Viscosity at 100°C mm²/s 18,0 DIN 51 562
Viscosity index VI 133 DIN ISO 2909
Flash point (COC) °C 228 DIN ISO 2592
Pourpoint °C -24 DIN ISO 3016
TBN mg KOH/g 8,5 DIN ISO 3771
Sulphated ash %wt. 1,3 DIN 51 575

All indicated data are approximate values and are subject to the commercial fluctuations.

PDF-Download

All information correspond to the best of our knowledge to the actual situation of the cognitions and our development. Subject to alterations. All references made to DIN-norms are only for the description of the goods. There is no guarantee. In case there will be any problems please contact the technical service.

24.03.2016
