- Certificate / Product Information -

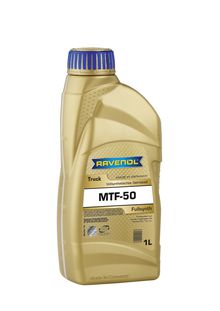

RAVENOL Truck MTF- 50

RAVENOL Truck MTF-50 is a fully synthetic heavy duty manual transmission oil requiring a non-EP lubricant.

RAVENOL Truck MTF-50 is based on synthetic base oils and special additives matched to them. Thus, the extended requirements of Eaton axle and transmission divisions are fulfilled.
RAVENOL Truck MTF-50 is ideally suited for severe operating conditions and extended oil change intervals.



Application Notes

RAVENOL Truck MTF-50 is recommended for extended drain an severe service in heavy duty (class 6, 7 and 8) manual transmissions requiring a non-EP lubricant.

Quality Classifications

RAVENOL Truck MTF-50 is tried and tested for aggregates specifying:

Specifications

API MT-1, EATON PS-164 Rev. 7, MACK TO-A PLUS, International TMS-6816, ZF FreedomLine, TE-ML 02L, ArvinMeritor 0-81

Characteristic

RAVENOL Truck MTF-50 offers:

  • Excellent thermal stability.
  • Strong protection against rust, corrosion and foaming.
  • A very low pour point.
  • Excellent EP properties.
  • A good switching behavior at low temperatures.
  • An extended service life.
  • Fuel savings.
RAVENOL Truck MTF- 50

Article number: 1221106
Packages:

1 L|1221106-001-01-999

4 L|1221106-004-01-999

10 L|1221106-010-01-999

20 L|1221106-020-01-999

60 L|1221106-060-01-999

208 L|1221106-208-01-999

Characteristics Unit Data Audit
Colour braun visual
Density at 20°C kg/m³ 857 EN ISO 12185
Viscosity at -40°C mPa*s 104.000 ASTM D2983
Viscosity at 40°C mm²/s 132,0 DIN 51 562
Viscosity at 100°C mm²/s 17,5 DIN 51 562
Viscosity index VI 146 DIN ISO 2909
Flash point (COC) °C 221 DIN ISO 2592
Pourpoint °C -45 DIN ISO 3016

All indicated data are approximate values and are subject to the commercial fluctuations.

All information correspond to the best of our knowledge to the actual situation of the cognitions and our development. Subject to alterations. All references made to DIN-norms are only for the description of the goods. There is no guarantee. In case there will be any problems please contact the technical service.

24.03.2016
