- Certificate / Product Information -

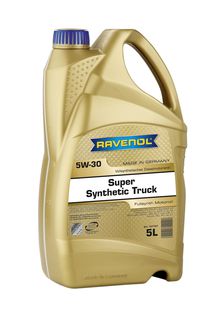

RAVENOL Super Synthetic Truck SAE 5W-30

RAVENOL Super Synthetic Truck SAE 5W-30 is a fully synthetic, diesel saving “Low SAPS” lorry motor oil based on the latest additive technology, with very special base oils. It was developed specifically for diesel engines under extreme conditions for use in any season. Excellent for use in EURO 4 and EURO 5 engines along with low-sulphur diesel. RAVENOL Super Synthetic Truck SAE 5W-30 is suitable for use in engines with or without particle filter and catalytic converter.
The cold viscosity SAE 5W ensures reliable cold starting in extreme temperatures (low cold-starting wear) and the quickest possible supply to all lubricating points. The high-temperature viscosity SAE 30 safely masters extreme stress. Friction loss and wear are reduced.

Application Notes

RAVENOL Super Synthetic Truck SAE 5W-30 is an all-season Low SAPS high performance commercial vehicle motor oil fine tuned for the new exhaust emission directives. All-season use in EURO IV and EURO V engines.
RAVENOL Super Synthetic Truck SAE 5W-30 is suitable for oil change intervals according to manufacturer specifications to over 100,000 km.

Specifications

ACEA 2004 E6, ACEA 2004 E7, ACEA 2002 E4

Approvals

MB 228.51, MAN 3477

Practice and tested in aggregates with filling

MTU Type 3.1, VOLVO VDS-3, Renault RXD

Characteristic

RAVENOL Super Synthetic Truck SAE 5W-30 offers:
  • Outstanding detergent properties, no residues in the engine
  • Outstanding dispersing properties – prevents cold sludge and residue formation
  • Extends the life of the particle filter by reducing the tendency to form particles
  • Low sulphate ash-, phosphorus- and sulphur content “Low SAPS”
  • Outstanding wear protection
  • Outstanding oxidation stability
  • Outstanding high temperature stability, high viscosity index
  • Low fuel consumption for cost effectiveness
  • Outstanding cold starting properties
RAVENOL Super Synthetic Truck SAE 5W-30

Article number: 1121101
Packages:

5L|1121101-005-01-999

10L|1121101-010-01-999

20L|1121101-020-01-999

60L|1121101-060-01-999

208L|1121101-208-01-999

Characteristics Unit Data Audit
Colour gelbbraun -
Density at 20°C kg/m³ 852 EN ISO 12185
Viscosity at –30°C mPa.s 6490 DIN 51 377
Viscosity at 40°C mm²/s 76 DIN 51 562
Viscosity at 100°C mm²/s 12,3 DIN 51 562
Viscosity index VI 160 DIN ISO 2909
Flash point (COC) °C 226 DIN ISO 2592
Pourpoint °C -54 DIN ISO 3016
TBN mg KOH/g 12,6 DIN ISO 3771
Sulphated ash %wt. 1,0 DIN 51 575

All indicated data are approximate values and are subject to the commercial fluctuations.

All information correspond to the best of our knowledge to the actual situation of the cognitions and our development. Subject to alterations. All references made to DIN-norms are only for the description of the goods. There is no guarantee. In case there will be any problems please contact the technical service.

24.03.2016
