- Certificate / Product Information -

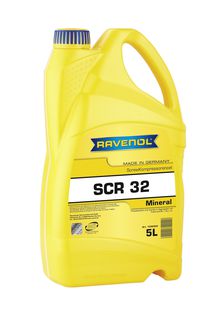

RAVENOL SCR 32 Screw Kompressorenöl
RAVENOL SCR 32 Screw Kompressorenöl is optimal alloyed mineral screw compressor oil, with a high performance level and a wide application area of the whole industry. It is characterised by good viscosity temperature behaviour, a high aging resistant and a solid corrosion protection. Efficient additives offer an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.
Application Notes
RAVENOL SCR 32 Screw Kompressorenöl is used in compressors.
Quality Classifications
RAVENOL SCR 32 Screw Kompressorenöl is tried and tested for aggregates specifying:
Specifications
Kennzeichnung nach DIN 51 502: HLP DIN 51 524, Teil 2, FZG-Test A 8,3/90: Die 12. Laststufe wird sicher erreicht
Characteristic
RAVENOL SCR 32 Screw Kompressorenöl offers:
- a high performance level
- a very good viscosity temperature behaviour
- a high aging resistant
- an excellent corrosion protection
- a solid corrosion protection
- neutrality of sealing materials
Article number: 1330304
Packages:
5 L|1330304-005-01-999
20 L|1330304-020-01-999
60 L|1330304-060-01-999
208 L|1330304-208-01-999
| Characteristics | Unit | Data | Audit |
|---|---|---|---|
| Colour | yellow brown | visual | |
| Density at 20°C | kg/m³ | 872 | EN ISO 12185 |
| Viscosity at 40°C | mm²/s | 32,7 | DIN 51 562 |
| Viscosity index VI | 98 | DIN ISO 2909 | |
| Flash point (COC) | °C | 220 | DIN ISO 2592 |
| Pourpoint | °C | -24 | DIN ISO 3016 |
| FZG-Test A/8,3/90 damage loading step | 12 | DIN 51 354 | |
| Aging stability, TOST | st | 2000 | DIN 51 587 |
All indicated data are approximate values and are subject to the commercial fluctuations.
All information correspond to the best of our knowledge to the actual situation of the cognitions and our development. Subject to alterations. All references made to DIN-norms are only for the description of the goods. There is no guarantee. In case there will be any problems please contact the technical service.
