- Certificate / Product Information -

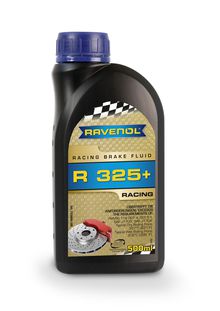

RAVENOL Racing Brake Fluid R325+

RAVENOL Racing Brake Fluid R325+ is a specially developed high performance braking fluid that has a very high thermal resistance at the very highest DOT 4 level. The formula is based on top class technology with a glycol ether / ester system. The use of a proven additive combination in conjunction with a basis system that is specifically adjusted for the high boiling range to the guarantees safety even under the most extreme loads.

RAVENOL Racing Brake Fluid R325+ is an ideal brake fluid for motor sports (car and motorbike racing) due to its very high dry and wet boiling point. The braking system is more responsive even under extreme conditions. Please always observe the vehicle manufacturer's specifications.

Application Notes

To achieve optimum results the braking system should be freshly filled with RAVENOL Racing Brake Fluid R325+  before each race. In particular when the brakes are inordinately hot or racing under tropical conditions.

Do not mix with other brake fluids!

Not suitable for vehicles that require a mineral brake fluid (LHM).

Observe manufacturer's specifications.

Not recommended if the components used are made of magnesium or are alloys with a high magnesium content.

Quality Classifications

RAVENOL Racing Brake Fluid R325+ is tried and tested for aggregates specifying:

Specifications

exceeds the requirements FMVSS 116 DOT 4, DOT 5.1, SAE J1703, SAE J1704

Characteristic

RAVENOL Racing Brake Fluid R 325+  offers:

  • Optimum ABS properties
  • Chemical stability
  • Highest lubricating power
  • Neutral towards brake parts
  • Low viscosity even at low temperatures
  • Miscibility with all brake fluids with the same specifications
RAVENOL Racing Brake Fluid R325+

Article number: 1350604
Packages:

500 ml|1350604-500-01-000

Characteristics Unit Data Audit
Colour yellow visual
Density at 20°C kg/m³ 1078 DIN EN 12185
kinematic viscosity at -40°C mm²/s 1495 DIN EN 3104
kinematic viscosity at 100°C mm²/s 2,6 DEIN 51 562
Boiling point °C 327 ISO 4925
wet boiling point °C 202 ISO 4925
Wassergehalt % <0.20 -

All indicated data are approximate values and are subject to the commercial fluctuations.

All information correspond to the best of our knowledge to the actual situation of the cognitions and our development. Subject to alterations. All references made to DIN-norms are only for the description of the goods. There is no guarantee. In case there will be any problems please contact the technical service.

23.03.2016
