- Certificate / Product Information -

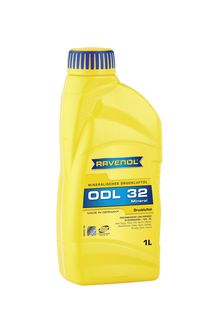

RAVENOL ODL 32 Druckluftoel
RAVENOL ODL 32 Druckluftoel is a special-compressed-air-oil for pneumatic tools of all systems.
RAVENOL ODL 32 Druckluftoel bonds condensed water, has an excellent corrosion protection, wear protection and an extraordinary pressure absorption capacity, a good adhesive power and high aging resistance. Easily conveying- and spray ability, economy consumption. No deposits caused by cleaning effects. Full power of impact.
Application Notes
RAVENOL ODL 32 Druckluftoel is specially suitable for pneumatic tools with sound-absorbing-case, for lubrication of rock drills, road breaker, chipping hammer and spade hammer, ram machines and other pneumatic aggregates. Application by pre-switch-lubricator according to working instructions or usable directly in the air pipe. Mind the manufacturer´s instructions.
Quality Classifications
RAVENOL ODL 32 is tried and tested for aggregates specifying:
Practice and tested in aggregates with filling
ATLAS COPCO, Festo, Hilti, Bosch, Makita, Black&Decker, Cress, Ryobi, DeWalt, Sumake, Seno, Hitachi
Characteristic
RAVENOL ODL 32 offers:
- a high performance level
- a very good viscosity temperature behaviour
- a good adherence
- a high aging resistance
- a reliable wear protection
- an excellent corrosion protection
- neutrality of sealing materials
Article number: 1323404
Packages:
1 L|1323404-001-01-999
5 L|1323404-005-01-999
10 L|1323404-010-01-999
20 L|1323404-020-01-999
60 L|1323404-060-01-999
208L|1323404-208-01-000
| Characteristics | Unit | Data | Audit |
|---|---|---|---|
| Colour | gelbbraun | visual | |
| Density at 20°C | kg/m³ | 878 | EN ISO 12185 |
| Viscosity at 40°C | mm²/s | 32,7 | DIN 51 562 |
| Viscosity at 100°C | mm²/s | 5,4 | DIN 51 562 |
| Viscosity index VI | 98 | DIN ISO 2909 | |
| Flash point (COC) | °C | 220 | DIN ISO 2592 |
| Pourpoint | °C | -24 | DIN ISO 3016 |
| FZG-Test A/8,3/90 damage loading step | 12 | DIN 51 354 |
All indicated data are approximate values and are subject to the commercial fluctuations.
All information correspond to the best of our knowledge to the actual situation of the cognitions and our development. Subject to alterations. All references made to DIN-norms are only for the description of the goods. There is no guarantee. In case there will be any problems please contact the technical service.
