- Certificate / Product Information -
RAVENOL Motogear SAE 80W-90 GL-4
RAVENOL Motogear SAE 80W-90 GL-4 is a transmission fluid on a mineral oil basis with special effective additives for manual transmissions. A high load-carrying capacity guarantees an optimum gearbox lubrication even at high temperatures.
RAVENOL Motogear SAE 80W-90 GL-4 ensures a strong oil film for lubrication even under the most extreme dynamic conditions.
RAVENOL Motogear SAE 80W-90 GL-4 reduces friction, prevents wear and corrosion.
Application Notes
RAVENOL Motogear SAE 80W-90 GL-4 is suitable for use in manual transmissions for 2- and 4-stroke motorcycles if an oil according to SAE 80W-90 API GL-4 is specified.
Quality Classifications
Specifications
API GL-4
Characteristic
RAVENOL Motogear SAE 80W-90 GL-4 offers:
- Highly adhesive and pressure resistant lubricant films
- Excellent oxidation stability
- Above-average viscosity-temperature characteristics
- Wear-preventing effect
- A good air release property, no foaming
- Neutral behaviour towards metal and sealing compounds

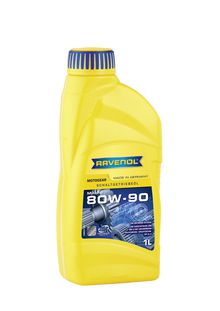

![RAVENOL Motogear SAE 80W-90 GL-4 RAVENOL Motogear SAE 80W-90 GL-4](../../../../../../../typo3temp/pics/be977b0d3a.jpg)
Article number: 1250055
Packages:
1 L|1250055-001-01-999
4 L|1250055-004-01-999
Characteristics | Unit | Data | Audit |
---|---|---|---|
Colour | brown | visual | |
Density at 20°C | kg/m³ | 879 | EN ISO 12185 |
Viscosity at 40°C | mm²/s | 118,5 | DIN 51 562 |
Viscosity at 100°C | mm²/s | 13,4 | DIN 51 562 |
Viscosity index VI | 109 | DIN ISO 2909 | |
Flash point (COC) | °C | 242 | DIN ISO 2592 |
Pourpoint | °C | -33 | DIN ISO 3016 |
All indicated data are approximate values and are subject to the commercial fluctuations.
All information correspond to the best of our knowledge to the actual situation of the cognitions and our development. Subject to alterations. All references made to DIN-norms are only for the description of the goods. There is no guarantee. In case there will be any problems please contact the technical service.
