- Certificate / Product Information -
RAVENOL MERCON V
RAVENOL MERCON V is a universal automatic transmission fluid ATF for automatic transmissions.
RAVENOL MERCON V is produced on the basis of hydrocrack oils and PAO with a special additivation and inhibition which guarantee a perfect function of the automatic transmission.
Application Notes
RAVENOL MERCON V was especially developed for the use in Ford automatic transmissions.
RAVENOL MERCON V guarantees a maximum of corrosion protection during any operating condition.
It is recommended to flush with RAVENOL MERCON V before filling.
Quality Classifications
RAVENOL MERCON V is approved, tried and tested for aggregates specifying:
Specifications
MERCON®V
Approvals
MERCON®V (License-No. M5060502)
Practice and tested in aggregates with filling
Ford WSS-M2C202-B, Ford XT-5-QMC, XT-5-5QM, XT-5-DMC, Ford 8000045, Ford ATF E-M5, Ford 1565889, Ford 5014519
Characteristic
RAVENOL Mercon V offers:
- a very good lubricating ability even at low temperatures in winter
- a high, stable viscosity index
- a very low pour point
- a very good oxidation stability
- as far as possible protection against corrosion and foam formation
- good balanced coefficient of friction
- neutral behaviour against sealing materials
- neutral behaviour because of inhibition against non ferrous metals

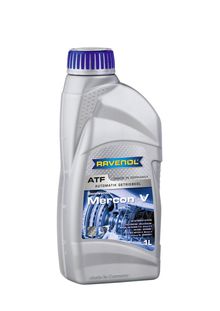

![RAVENOL MERCON V RAVENOL MERCON V](../../../../../../../typo3temp/pics/bc4f09bf32.jpg)
Article number: 1212101
Packages:
1 L|1212101-001-01-999
4 L|1212101-004-01-999
10 L|1212101-010-01-999
20 L|1212101-020-01-999
60 L|1212101-060-01-888
208 L|1212101-208-01-888
1000 L|1212101-001-06-999
Characteristics | Unit | Data | Audit |
---|---|---|---|
Colour | rot | visual | |
Density at 20°C | kg/m³ | 847 | EN ISO 12185 |
Viscosity at -40°C | mPa*s | 17200 | DIN 51 377 |
Viscosity at 40°C | mm²/s | 31,8 | DIN 51 562 |
Viscosity at 100°C | mm²/s | 7,1 | DIN 51 562 |
Flash point (COC) | °C | 140 | DIN ISO 2592 |
Pourpoint | °C | -48 | DIN ISO 3016 |
All indicated data are approximate values and are subject to the commercial fluctuations.
All information correspond to the best of our knowledge to the actual situation of the cognitions and our development. Subject to alterations. All references made to DIN-norms are only for the description of the goods. There is no guarantee. In case there will be any problems please contact the technical service.
