- Certificate / Product Information -
RAVENOL MARINEOIL DIESEL SHPD 20W-50
RAVENOL MARINEOIL DIESEL SHPD 20W-50 is a SHPD multi-range engine oil for marine diesel engines.
RAVENOL MARINEOIL DIESEL SHPD 20W-50 corresponds to the demands of the SAE class 20W-50. This viscosity classification guarantees a good lubricating film also under complicate operating conditions.
Specifications
API CI-4/SL, ACEA E7, ACEA B4
Practice and tested in aggregates with filling
YANMAR, Steyr, Mercruiser
Characteristic
RAVENOL MARINEOIL DIESEL SHPD 20W-50 offers :
- an extreme high pressure absorption capacity
- a very high oxidation stability
- an excellent aging resistance
- an excellent viscosity temperature behaviour
- high safety reserves also under boundary lubrication conditions
- suitability for extended oil change intervals
- suitability for complicate operating conditions
- a good water separation behaviour

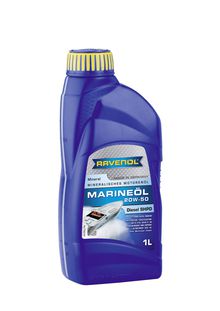

![RAVENOL MARINEOIL DIESEL SHPD 20W-50 RAVENOL MARINEOIL DIESEL SHPD 20W-50](../../../../../../../typo3temp/pics/d690aaf173.jpg)
Article number: 1163110
Packages:
1 L|1163110-001-01-999
4 L|1163110-004-01-999
10 L|1163110-010-01-999
20 L|1163110-020-01-999
60 L|1163110-060-01-999
208 L|1163110-208-01-999
1000 L|1163110-001-06-999
Characteristics | Unit | Data | Audit |
---|---|---|---|
Colour | blau | visual | |
Density at 20°C | kg/m³ | 886 | EN ISO 12185 |
Viscosity at 40°C | mm²/s | 150,0 | DIN 51 562 |
Viscosity at 100°C | mm²/s | 18,0 | DIN 51 562 |
Viscosity index VI | 133 | DIN ISO 2909 | |
Flash point (COC) | °C | 228 | DIN ISO 2592 |
Pourpoint | °C | -24 | DIN ISO 3016 |
TBN | mg KOH/g | 8,5 | DIN ISO 3771 |
Sulphated ash | %wt. | 1,3 | - |
All indicated data are approximate values and are subject to the commercial fluctuations.
All information correspond to the best of our knowledge to the actual situation of the cognitions and our development. Subject to alterations. All references made to DIN-norms are only for the description of the goods. There is no guarantee. In case there will be any problems please contact the technical service.
24.03.2016Ravensberger Schmierstoffvertrieb GmbH
Postfach 1163
33819 Werther
Tel.: 05203/9719-0
Fax.: 052039719-40 / 41
