- Certificate / Product Information -

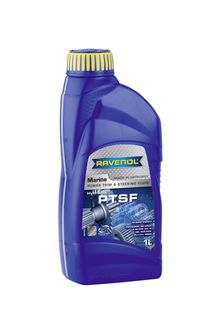

RAVENOL MARINE Power Trim & Steering Fluid
RAVENOL MARINE Power Trim & Steering Fluid is a high quality hydraulic oil based on specially selected solvent refined base oils.
It is particularly characterized by a high and stable viscosity index and reliable corrosion protection. Effective additives provide an excellent wear protection even under extreme loads. The behaviour towards sealing materials is neutral.
Application Notes
RAVENOL MARINE Power Trim & Steering Fluid is an excellent product for lubrication of hydraulics in the marine area.
May not be used if in the hydraulic systems are silver and / or silver-plated construction and operating elements present.
Practice and tested in aggregates with filling
OMC, VOLVO PENTA, Mercruiser, YANMAR
Characteristic
RAVENOL MARINE Power Trim & Steering Fluid offers:
- A high and stable viscosity index
- Excellent protection against wear
- Widest possible protection against corrosion
- A very good air and water separation to prevent foaming
- A neutral attitude towards plastic and seals
- A very low pour point
Article number: 1234100
Packages:
1 L|1234100-001-01-999
4 L|1234100-004-01-999
10 L|1234100-010-01-999
20 L|1234100-020-01-999
60 L|1234100-060-01-999
208 L|1234100-208-01-999
1000 L|1234100-001-06-999
| Characteristics | Unit | Data | Audit |
|---|---|---|---|
| Colour | blue | visual | |
| Density at 20°C | kg/m³ | 857 | EN ISO 12185 |
| Viscosity at 40°C | mm²/s | 32,0 | DIN 51 562 |
| Viscosity at 100°C | mm²/s | 6,3 | DIN 51 562 |
| Viscosity index VI | 152 | DIN ISO 2909 | |
| Flash point (COC) | °C | 215 | DIN ISO 2592 |
| Pourpoint | °C | -39 | DIN ISO 3016 |
| TBN | mg KOH/g | 0,4 | DIN ISO 3771 |
| Sulphated ash | %wt. | 0,06 | DIN 51 575 |
All indicated data are approximate values and are subject to the commercial fluctuations.
All information correspond to the best of our knowledge to the actual situation of the cognitions and our development. Subject to alterations. All references made to DIN-norms are only for the description of the goods. There is no guarantee. In case there will be any problems please contact the technical service.
