- Certificate / Product Information -

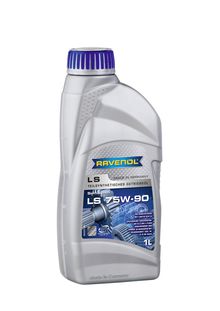

RAVENOL Getriebeoel LS SAE 75W-90

RAVENOL Getriebeoel LS SAE 75W-90 is a semi-synthetic lubricant for mechanical transmissions.

RAVENOL Getriebeoel LS SAE 75W-90 is designed based on high-quality solvent refined and synthetic base oils with special additive treatment and inhibition for higher stress on manual transmission oils and ensuring trouble-free transmission function.

Application Notes


RAVENOL Getriebeoel LS SAE 75W-90 was developed specifically for use in differential gear units with limited slip. It also ensures trouble-free lubrication in self-locking, hypoid geared transmissions.




Quality Classifications

Specifications

API GL-5

Practice and tested in aggregates with filling

MIL-L-2105D, ZF TE-ML 05C/D

Characteristic

RAVENOL LS SAE 75W-90 offers:

  • excellent oxidation stability
  • excellent protection against rust and corrosion
  • prevents foaming
  • outstanding extreme pressure properties
  • excellent limited slip properties
  • fuel savings
RAVENOL Getriebeoel LS SAE 75W-90

Article number: 1222102
Packages:

1 L|1222102-001-01-999

4 L|1222102-004-01-999

10 L|1222102-010-01-999

20 L|1222102-020-01-999

60 L|1222102-060-01-999

208 L|1222102-208-01-999

1000 L|1222102-001-06-999

Characteristics Unit Data Audit
Colour gelbbraun visual
Density at 20°C kg/m³ 871 EN ISO 12185
Viscosity at 40°C mm²/s 78,8 DIN 51 562
Viscosity at 100°C mm²/s 14 DIN 51 562
Viscosity index VI 192 DIN ISO 2909
Flash point (COC) °C 172 DIN ISO 2592
Pourpoint °C -40 DIN ISO 3016

All indicated data are approximate values and are subject to the commercial fluctuations.

All information correspond to the best of our knowledge to the actual situation of the cognitions and our development. Subject to alterations. All references made to DIN-norms are only for the description of the goods. There is no guarantee. In case there will be any problems please contact the technical service.

23.03.2016

Gear oils for manual transmissions

SAE/ Viscosity

Specifications

Fabrication
