- Certificate / Product Information -

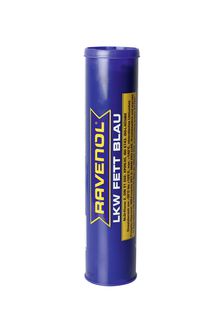

RAVENOL LKW FETT BLAU
RAVENOL LKW FETT BLAU is a lithium saponified multipurpose grease on mineral basis with oxidation and corrosion protective additives.
Because of its special additivation RAVENOL LKW FETT BLAU has an excellent pressure absorption capacity, excellent corrosion protection characteristics and a superior mechanical stability.
Application Notes
RAVENOL LKW FETT BLAU is used for the lubrication of high loaded friction and antifriction bearings of trucks and construction machines even under the influence of humidity, vibration and shock loading. Functional range from - 30°C up + 150 °C (maximum + 220 °C). NLGI class 2. Extended lubrication intervals.
Quality Classifications
RAVENOL LKW FETT BLAU is tried and tested for aggregates specifying:
Specifications
DIN 51 502: KP2N-30, ISO 6743 Part 9: ISO-L-XCDIB2, VOLVO STD "Lubricating grease 97720"
Approvals
MAN 283 Li-P2, MB-Approval 267.0
Characteristic
RAVENOL LKW FETT BLAU is characterised by the following:
- an extreme shear stability
- an excellent corrosion protection
- a very good mechanical and chemical stability
- a very good aging resistant
- a good pump output also at low temperatures
Article number: 1340117
Packages:
400 g|1340117-400-04-000
1 kg|1340117-001-03-000
5 kg|1340117-005-03-000
10 kg|1340117-010-03-000
15 kg|1340117-015-03-000
18 kg|1340117-018-03-000
25 kg|1340117-025-03-000
180 kg|1340117-180-03-000
| Characteristics | Unit | Data | Audit |
|---|---|---|---|
| Colour | blue | visual | |
| Thickener | Lithium-Komplexseifen | - | |
| NLGI-Class | 2 | DIN 51 818 | |
| DIN-Product-Classification | KP2N-30 | DIN 51 502 | |
| ISO-Product-Classification | ISO-L-XCDIB2 | ISO 6743 P.9 | |
| Working Temperature | °C | -30 / +140 | DIN 51 825 |
| Short Term up to | °C | 220 | - |
| Worked Penetration 60 strokes | mm/10 bei 25°C | 265-295 | ISO 2137 |
| Corrosion (SKF Emcor dist. Water) | Corr. Degree | 0 | DIN 51 802 |
| Dropping Point | °C | 220 | DIN ISO 2176 |
| Copper Corrosion (24h/120°C) | 1 | DIN 51 811 | |
| Water Resistance (3h/90°C) | °C | 1-90 | DIN 51 807 T.1 |
| VKA Pressure Carrying Capacity | N | 2200 - 2400 | DIN 51 350 T.4 |
| Kinematic Viscosity (Base Oil) | mm²/s bei 40°C | 220 | DIN 51562-1 |
All indicated data are approximate values and are subject to the commercial fluctuations.
All information correspond to the best of our knowledge to the actual situation of the cognitions and our development. Subject to alterations. All references made to DIN-norms are only for the description of the goods. There is no guarantee. In case there will be any problems please contact the technical service.
