- Certificate / Product Information -
RAVENOL LGC - Protect C13 Concentrate
BASED ON GLYCERIN
RAVENOL LGC Lobrid Glycerin Coolant Concentrate is an eco-friendly 1.2- Ethanediol (monoethylene glycol) based coolant with 20% glycerine additive for cooling circuits in combustion engines which provides maintenance-free corrosion and frost protection. This product is formulated based on a proven inhibitor development by combining glycerine and silicates with the organic additive technology OAT as an extended life coolant.
The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.
That is why automakers subject antifreeze to lengthy corrosion and cavitation tests.
RAVENOL LGC Lobrid Glycerin Coolant Concentrate protects the cooling system from corrosion, frost, and in the summer from overheating.
Application Notes
RAVENOL LGC Lobrid Glycerin Coolant Concentrate with frost and rust protection for year-round use in all-aluminium engines. Use according to the mixing chart. Follow manufacturer’s recommendations.
Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.
Instructions: Clean cooling system, check for leaks, flush.
Mix RAVENOL LGC Lobrid Glycerin Coolant Concentrate with fresh water (per mixing chart) and add. Allow engine and heater to warm up, add coolant to fill level.
Quality Classifications
RAVENOL LGC Lobrid Glycerin Coolant Concentrate is tried and tested for aggregates specifying:
Specifications
VW TL 774-J (acc. to G13 ), VW G012A8FM1, G012A8FM8, G012A8GM9, Audi, Skoda & Seat
Characteristic
RAVENOL LGC Concentrate offers:
- Excellent for all-aluminium engines
- Good reserve alkalinity
- Optimal rust protection for all metals and metal alloys used in cooling systems, including aluminium
- Prevents cavitation
- Prevents sediments and foaming in the cooling system
- Compatible with elastomers used in automotive radiators
- Can be mixed with other coolant types

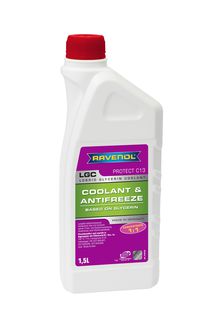

![RAVENOL LGC - Protect C13 Concentrate RAVENOL LGC - Protect C13 Concentrate](../../../../../../../typo3temp/pics/1789106741.jpg)
Article number: 1410128
Packages:
1,5 L|1410128-150-01-999
5 L|1410128-005-01-999
10 L|1410128-010-01-999
20 L|1410128-020-01-999
60 L|1410128-060-01-999
208 L|1410128-208-01-999
Characteristics | Unit | Data | Audit |
---|---|---|---|
Colour | violett/lila | visual | |
Density at 20°C | kg/m³ | 1140 | EN ISO 12185 |
Flash point | °C | 110 | DIN 51 758 |
Boiling point | °C | 170 | ASTM D 1120 |
pH-value (50 %, 20°C) | 7,8 | ASTM D 1287 | |
Reserve alkalinity | ml 0,1 n HCL | 5,5 | ASTM D 1121 |
Water content | Gew.-% | 5 | ASTM D 1123 |
Freezing point | °C | -35 | ASTM D 1177 |
All indicated data are approximate values and are subject to the commercial fluctuations.
All information correspond to the best of our knowledge to the actual situation of the cognitions and our development. Subject to alterations. All references made to DIN-norms are only for the description of the goods. There is no guarantee. In case there will be any problems please contact the technical service.
