- Certificate / Product Information -

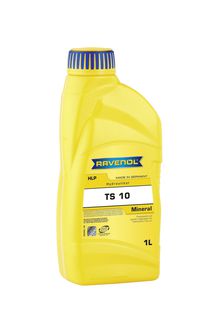

RAVENOL Hydrauliköl TS 10 (HLP)
RAVENOL Hydrauliköl TS 10 (HLP) is optimal alloyed mineral hydraulic oil with a high performance level and a wide application area of the whole industry. It is characterised by good viscosity temperature behaviour, a high aging resistant and a solid corrosion protection. Efficient additives offer an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.
Application Notes
RAVENOL TS 10 Hydraulikoel (HLP) is for universally use in all hydraulic systems. It is recommended in high performance hydraulic systems with high pressure pumps of all types, in sensitive control systems, for hydraulic systems in agriculture, to supply small gearboxes and for use in circulating systems.
Specifications
DIN 51 524, Part 2, Vickers-Pumpentest, FZG-Test A 8,3/90: 12. Laststufe, MIL-H 24 459, DENISON HF-1, HF-0, HF-2, AFNOR NFE 48 603 HM, Cincinnati Milacron P68 (HM-32), P69 (HM-68), P70 (HM-46)
Practice and tested in aggregates with filling
Vickers-Pumpentest, VDMA 24568/ ISO 15380, DENSION HF-2/ HF-0, FZG-Test A8, 3/90, AFNOR NFE 48 603 HM, MIL-H 24 459, Cincinnati Milacron P-68/ 69/ 70
Characteristic
RAVENOL Hydrauliköl TS 10 (HLP) offers:
- a high performance level
- a very good viscosity temperature behaviour
- a high aging resistant
- an excellent corrosion protection
- a solid corrosion protection
- neutrality of sealing materials
![RAVENOL Hydrauliköl TS 10 (HLP) RAVENOL Hydrauliköl TS 10 (HLP)](../../../../../../../typo3temp/pics/b62587d9ae.jpg)
Article number: 1323101
Packages:
1 L|1323101-001-01-999
20 L|1323101-020-01-999
60 L|1323101-060-01-999
208 L|1323101-208-01-999
1000 L|1323101-001-06-999
Characteristics | Unit | Data | Audit |
---|---|---|---|
Colour | gelbbraun | visual | |
Density at 20°C | kg/m³ | 870 | EN ISO 12185 |
Viscosity at 40°C | mm²/s | 11,0 | DIN 51 562 |
Viscosity at 100°C | mm²/s | 2,8 | DIN 51 562 |
Viscosity index VI | 98 | DIN ISO 2909 | |
Flash point (COC) | °C | 180 | DIN ISO 2592 |
Pourpoint | °C | -32 | DIN ISO 3016 |
All indicated data are approximate values and are subject to the commercial fluctuations.
All information correspond to the best of our knowledge to the actual situation of the cognitions and our development. Subject to alterations. All references made to DIN-norms are only for the description of the goods. There is no guarantee. In case there will be any problems please contact the technical service.
