- Certificate / Product Information -
RAVENOL Getriebeoel TSG SAE 75W-90
RAVENOL Getriebeoel TSG SAE 75W-90 is a semi-synthetic multi-purpose transmission oil for maximum duty manual transmissions.
RAVENOL Getriebeoel TSG SAE 75W-90 is designed based on high-quality synthetic base oils with special additive treatment and inhibition coordinated to the increased stress on manual transmission oils and ensuring trouble-free transmission function.
Application Notes
RAVENOL Getriebeoel TSG SAE 75W-90 is suitable for highly stressed manual transmissions (with and without synchronising), transfer cases and steering gearboxes in vehicles and work machines.
Quality Classifications
Specifications
API GL-4
Practice and tested in aggregates with filling
PSA Standard B 71 2315, VW 501 50, Ford M2C-175, GM Opel B 040 104 3
Characteristic
RAVENOL Getriebeoel TSG SAE 75W-90 offers:
• excellent ageing resistance
• extra high pressure absorption properties
• optimal viscosity-temperature properties
• excellent low temperature properties
• shearing stability
• stable lubricating film even under high stress
• extremely low pour point
• good elastomer compatibility to prevent leaks

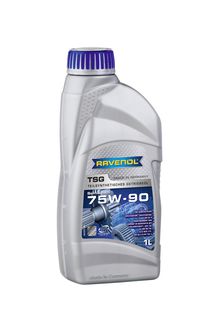

![RAVENOL Getriebeoel TSG SAE 75W-90 RAVENOL Getriebeoel TSG SAE 75W-90](../../../../../../../typo3temp/pics/019b614d3c.jpg)
Article number: 1222101
Packages:
1L|1222101-001-01-999
4L|1222101-004-01-999
10L|1222101-010-01-999
20L|1222101-020-01-999
60L|1222101-060-01-888
208L|1222101-208-01-888
1000L|1222101-011-06-999
Characteristics | Unit | Data | Audit |
---|---|---|---|
Colour | gelbbraun | - | |
Density at 20°C | kg/m³ | 876 | EN ISO 12185 |
Viscosity at 40°C | mm²/s | 76,3 | DIN 51 562 |
Viscosity at 100°C | mm²/s | 14,2 | DIN 51 562 |
Viscosity index VI | 194 | DIN ISO 2909 | |
Pourpoint | °C | -42 | DIN ISO 3016 |
All indicated data are approximate values and are subject to the commercial fluctuations.
All information correspond to the best of our knowledge to the actual situation of the cognitions and our development. Subject to alterations. All references made to DIN-norms are only for the description of the goods. There is no guarantee. In case there will be any problems please contact the technical service.
