- Certificate / Product Information -

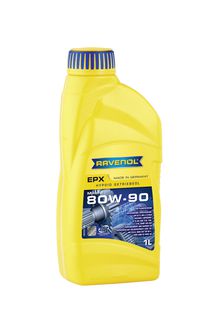

RAVENOL Getriebeoel EPX SAE 80W-90 GL 5

Multirange transmission oil for synchronised and non synchronised manual transmissions as well as axle drives, distributor transmissions, intermediate transmissions in vehicles and working machines.

In order to avoid the seasonal change of the transmission oil RAVENOL Getriebeoel EPX SAE 80W-90 GL 5 was developed. It can be used in winter as well as in summer. Its universal use reduces the risk of mix-up and storage. Because of the balanced additive combination characteristics like a high pressure absorption capacity, a superior viscosity temperature behaviour, a high oxidation stability, low pour points, a good corrosion protection and non-sludging are guaranteed.

Application Notes

RAVENOL Getriebeoel EPX SAE 80W-90 GL 5 is compatible with all brand-name transmission oils. In case of changing to RAVENOL Getriebeoel EPX SAE 80W-90 GL 5 flushing is not necessary.

RAVENOL Getriebeoel EPX SAE 80W-90 GL 5 can be used in manual transmissions, axle drives, distributor and intermediate transmissions in vehicles and working machines.



Quality Classifications

Specifications

API GL-5, MIL-L-2105D

Approvals

ZF TE-ML 16B, ZF TE-ML 19B, ZF TE-ML 17B, ZF TE-ML 21A, LOVAT LOV-204

Practice and tested in aggregates with filling

MAN 342 Typ M1, MB 235.0, FORD SQM-2C-9002 AA

Characteristic

RAVENOL Getriebeoel EPX SAE 80W-90 GL offers:

• An optimum cold flow capacity

• An excellent corrosion protection also regarding short distances in winter

• Extreme pressure stability, therefore an excellent corrosion protection at all loads, reduced transmission

• An excellent shear stability

• A very good oxidation stability, no foam

• No oil thickening power respectively deposits

• An extremely high aging resistant

• A very good viscosity temperature behaviour

• An efficient corrosion protection

• Protection against corrosion, sludge and sticking

• An excellent corrosion protection, no rust, no attack of nonferrous metals

• Neutral behaviour of sealing materials that means the transmissions stay closed, no oil loss

RAVENOL Getriebeoel EPX SAE 80W-90 GL 5

Article number: 1223205
Packages:

1 L|1223205-001-01-999

4 L|1223205-004-01-999

10 L|1223205-010-01-999

20 L|1223205-020-01-999

60 L|1223205-060-01-999

208 L|1223205-208-01-999

1000 L|1223205-001-06-999

Characteristics Unit Data Audit
Density at 20°C kg/m³ 888 EN ISO 12185
Viscosity at 40°C mm²/s 150,5 DIN 51 562
Viscosity at 100°C mm²/s 15,2 DIN 51 562
Viscosity index VI 102 DIN ISO 2909
Flash point (COC) °C 210 DIN ISO 2592
Pourpoint °C -27 DIN ISO 3016

All indicated data are approximate values and are subject to the commercial fluctuations.

All information correspond to the best of our knowledge to the actual situation of the cognitions and our development. Subject to alterations. All references made to DIN-norms are only for the description of the goods. There is no guarantee. In case there will be any problems please contact the technical service.

24.03.2016
