RAVENOL Getriebeoel EPX SAE 80 GL 5
Multi-purpose transmission oil for synchronised and non-synchronised manual transmissions and for axle transmissions, transfer cases, intermediate gear boxes, ancillary transmissions in vehicles and work machines.
RAVENOL Getriebeoel EPX SAE 80 GL 5 was developed to eliminate seasonal transmission oil changes. It can be used during winter and summer. Its universal application minimises the risk of confusion and eases makes stock-keeping. The balanced additive combination warrants properties such as high pressure capacity, above average viscosity-temperature properties, high oxidation stability, low solidification points, good wear protection and prevents sludge.
Application Notes
RAVENOL Getriebeoel EPX SAE 80 GL 5 is compatible with all name brand transmission oils. No “flushing” required when switching to RAVENOL Getriebeoel EPX SAE 80 GL 5.
Use RAVENOL Getriebeoel EPX SAE 80 GL 5 in manual transmissions, axle-, transfer-, intermediate- and ancillary gearboxes in vehicles and work machines.
Quality Classifications
Specifications
API GL-5
Practice and tested in aggregates with filling
MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 17B, MAN 342 Typ M1, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, Ford SQM-2C-9002AA, MB 235.0
Characteristic
RAVENOL EPX Getriebe-Oel SAE 80 GL-5 offers:
- Optimal cold flow property
- Outstanding wear protection even with short trips in winter
- High pressure stable lubrication film, thus outstanding wear protection under any stress, reduced transmission noise and the best transmission efficiency under full load, i.e. even with very hot oil.
- Outstanding shearing stability
- Excellent oxidation stability, no foaming
- No oil thickening or deposits
- Extraordinary ageing stability
- Excellent viscosity-temperature properties
- Effective wear protection
- Extraordinary corrosion protection, no rust, won’t harm non-ferrous metals
- Neutral to sealants, i.e. transmissions stay tight, no oil loss

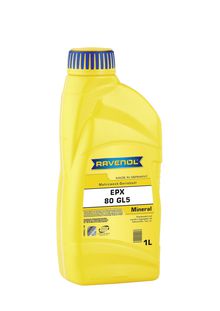

![RAVENOL Getriebeoel EPX SAE 80 GL 5 RAVENOL Getriebeoel EPX SAE 80 GL 5](../../../../../../../typo3temp/pics/5b2a9d7e22.jpg)
Article number: 1223201
Packages:
1 L|1223201-001-01-999
4 L|1223201-004-01-999
10 L|1223201-010-01-999
20 L|1223201-020-01-999
60 L|1223201-060-01-999
208 L|1223201-208-01-999
1000 L|1223201-001-06-999
Characteristics | Unit | Data | Audit |
---|---|---|---|
Colour | braun | visual | |
Density at 20°C | kg/m³ | 888 | EN ISO 12185 |
Viscosity at 40°C | mm²/s | 150,5 | DIN 51 562 |
Viscosity at 100°C | mm²/s | 15,2 | DIN 51 562 |
Viscosity index VI | 102 | DIN ISO 2909 | |
Flash point (COC) | °C | 210 | DIN ISO 2592 |
Pourpoint | °C | -27 | DIN ISO 3016 |
All indicated data are approximate values and are subject to the commercial fluctuations.
All information correspond to the best of our knowledge to the actual situation of the cognitions and our development. Subject to alterations. All references made to DIN-norms are only for the description of the goods. There is no guarantee. In case there will be any problems please contact the technical service.
