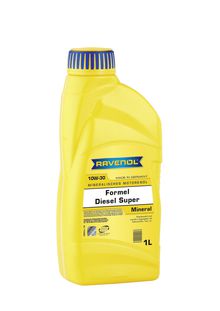

RAVENOL Formel Diesel Super SAE 10W-30

RAVENOL Formel Diesel Super 10W-30 is modern high-alloyed HD motor oil with synthetic additives. The high proportion of additive guarantees an excellent effect, especially in regard to the detergent, dispersant and anti-wear properties.

RAVENOL Formel Diesel Super 10W-30 has an excellent lubricating film adhesion, an excellent cleaning efficiency as well as a high aging resistance.

Application Notes

RAVENOL Formel Diesel Super 10W-30 is suitable for all kinds of passenger cars - gasoline and diesel engines - and can be ideally used the whole year, even with turbo charging.

Specifications

API CF/CF-4, ACEA E2

Practice and tested in aggregates with filling

VW 505 00, Volvo VDS, Caterpillar TO-4, MTU Type 2, MB 228.1, MAN 271, ZF TE-ML 07C, Allison C-4

Characteristic

RAVENOL Formel Diesel Super 10W-30 offers:

  • Suitable for catalyst vehicles
  • Excellent detergent and dispersant characteristics
  • Good cold start characteristics
  • High oxidation stability
  • Excellent viscosity temperature behaviour
  • Best wear protection
  • Reduces emissions
  • High safety reserves

RAVENOL Formel Diesel Super SAE 10W-30

Article number: 1123205
Packages:

1 L|1123205-001-01-999

5 L|1123205-005-01-999

10 L|1123205-010-01-999

20 L|1123205-020-01-999

60 L|1123205-060-01-999

208 L|1123205-208-01-999

1000 L|1123205-001-06-999

Characteristics Unit Data Audit
Colour gelbbraun visual
Density at 20°C kg/m³ 874 EN ISO 12185
Viscosity at 40°C mm²/s 70,0 DIN 51 562
Viscosity at 100°C mm²/s 10,5 DIN 51 562
Viscosity index VI 137 DIN ISO 2909
Flash point (COC) °C 214 DIN ISO 2592
Pourpoint °C - 34 DIN ISO 3016
TBN mg KOH/g 8,5 DIN ISO 3771
Sulphated ash %wt. ca. 0,9 -

All indicated data are approximate values and are subject to the commercial fluctuations.

PDF-Download

All information correspond to the best of our knowledge to the actual situation of the cognitions and our development. Subject to alterations. All references made to DIN-norms are only for the description of the goods. There is no guarantee. In case there will be any problems please contact the technical service.

24.03.2016
