- Certificate / Product Information -
RAVENOL Fork Oil Light 5W
RAVENOL Fork Oil Light 5W is a fully synthetic fork oil on ester base which was developed for all forks of high performance motorbikes and especially for USD forks. The synthetic components and the excellent viscosity index of RAVENOL Fork Oil Light 5W offer an optimum damping behaviour at all temperatures as well as an excellent air separation behaviour under all operating conditions – even during racings.
Application Notes
RAVENOL Fork Oil Light 5W was developed for the use in all chassis components of two-wheeler vehicles and offers excellent power characteristics. In order to obtain the optimum viscosity for the vehicle and operating condition the fully synthetic fork oils are miscible among each other.
Quality Classifications
RAVENOL Fork Oil Light 5W is approved, tried and tested for aggregates specifying:
Specifications
ISO 7308, DIN 51 524, Part 2
Practice and tested in aggregates with filling
Yamaha, Kawasaki, Honda, Aprilia, BMW, Suzuki, Ducati, Triumph, Moto-Guzzi
Characteristic
RAVENOL Fork Oil Light 5W offers:
- good damping characteristics at all temperatures
- a high and stable viscosity index
- an excellent protection against corrosion, therefore a longer endurance of the fork components
- as far as possible protection against corrosion of the inside components
- a very good air and water separation behaviour to prevent foam formation
- neutral behaviour against sealings made of plastics
- a very low pour point

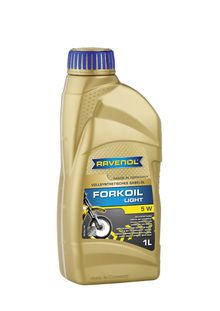

![RAVENOL Fork Oil Light 5W RAVENOL Fork Oil Light 5W](../../../../../../../typo3temp/pics/3f3c4ca8ee.jpg)
Article number: 1182102
Packages:
1 L|1182102-001-01-999
4 L|1182102-004-01-999
Characteristics | Unit | Data | Audit |
---|---|---|---|
Colour | clear, green | visual | |
Density at 15°C | kg/m³ | 828 | EN ISO 12185 |
Viscosity at 40°C | mm²/s | 20,9 | DIN 51 562 |
Viscosity at 100°C | mm²/s | 6,5 | DIN 51 562 |
Viscosity index VI | 302 | DIN ISO 2909 | |
Flash point (COC) | °C | 190 | DIN ISO 2592 |
Pourpoint | °C | <-50 | DIN ISO 3016 |
All indicated data are approximate values and are subject to the commercial fluctuations.
All information correspond to the best of our knowledge to the actual situation of the cognitions and our development. Subject to alterations. All references made to DIN-norms are only for the description of the goods. There is no guarantee. In case there will be any problems please contact the technical service.
24.03.2016Ravensberger Schmierstoffvertrieb GmbH
Postfach 1163
33819 Werther
Tel.: 05203/9719-0
Fax.: 052039719-40 / 41
