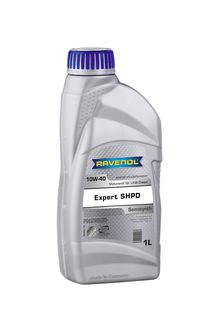

RAVENOL Expert SHPD 10W-40
RAVENOL Expert SHPD 10W-40 is a easy running engine oil for the use in heavily used induction motors, turbo diesel engines as well as petrol engines. RAVENOL Expert SHPD 10W-40 is suitable for the use of a mixed car pool. The mixture of unconventional as well as HC basic oils, synthetic components and modern additives guarantees longest oil change intervals and a high corrosion protection at a low oil and fuel consumption.
Application Notes
RAVENOL Expert SHPD 10W-40 has an excellent flow behaviour even at low temperatures. The quick reach of critical lubrication points provides a considerable corrosion reduction during the warm-up period. Exclusive additives guarantee the best engine cleanness even at short distances.
Quality Classifications
RAVENOL Expert SHPD 10-40 is approved, tried and tested for aggregates specifying:
Specifications
ACEA E4/E7, A3/B4, License: API CI-4/SL, API CI-4 beinhaltet: CH-4/CG-4/CF
Approvals
MB-Approval 228.3, MB-Approval 229.1, Cummins CES 20077, CES 20078, DEUTZ DQC III-10, MAN M 3275-1, Volvo VDS 3, YaMZ, MACK EOM-Plus, MACK EO-N, Renault VI RLD-2, MTU Typ 2, TEDOM 258-3 (61-0-0258)
Practice and tested in aggregates with filling
Cummins CES 20071,-72, -76, SCANIA LDF, Global DHD-1 VW 500 00, 505 00, Caterpillar TO-2, Allison C-4, Voith Retarder B, IVECO, DAF
Characteristic
RAVENOL Expert SHPD 10W-40 offers:
- Excellent detergent and dispersant characteristics
- Low evaporation
- A high ageing stability
- Protection of reflecting surface formation
- Very good cold start characteristics
- Reduces oil and fuel consumption
![RAVENOL Expert SHPD 10W-40 RAVENOL Expert SHPD 10W-40](../../../../../../../typo3temp/pics/aa7843eeda.jpg)
Article number: 1122105
Packages:
1 L|1122105-001-01-999
5 L|1122105-005-01-999
10 L|1122105-010-01-999
20 L|1122105-020-01-999
60 L|1122105-060-01-999
208 L|1122105-208-01-999
1000 L|1122105-700-01-999
Characteristics | Unit | Data | Audit |
---|---|---|---|
Colour | gelbbraun | visual | |
Density at 20°C | kg/m³ | 868 | EN ISO 12185 |
Viscosity at –25°C | mPa.s | <7000 | DIN 51 377 |
Viscosity at 40°C | mm²/s | 92,0 | DIN 51 562 |
Viscosity at 100°C | mm²/s | 13,7 | DIN 51 562 |
Viscosity index VI | 151 | DIN ISO 2909 | |
Flash point (COC) | °C | 214 | DIN ISO 2592 |
Pourpoint | °C | - 36 | DIN ISO 3016 |
TBN | mg KOH/g | 11 | DIN ISO 3771 |
Sulphated ash | %wt. | 1,3 | DIN 51 575 |
All indicated data are approximate values and are subject to the commercial fluctuations.
All information correspond to the best of our knowledge to the actual situation of the cognitions and our development. Subject to alterations. All references made to DIN-norms are only for the description of the goods. There is no guarantee. In case there will be any problems please contact the technical service.
23.03.2016Ravensberger Schmierstoffvertrieb GmbH
