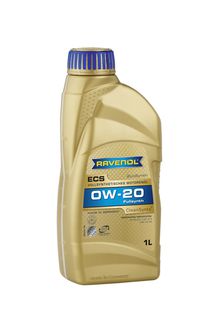

RAVENOL Eco Synth ECS SAE 0W-20

RAVENOL Eco Synth ECS SAE 0W-20 is full synthetic, low-friction engine oil based on PAO (Polyalphaolefines) with CleanSynto® technology for car gasoline and diesel engines, with and without turbocharging and direct injection. Minimizes friction, wear and fuel consumption, and is suitable for extended oil drain intervals according to manufacturer's instructions. The excellent cold start performance ensures optimum lubrication during start-up, and as RAVENOL Eco Synth ECS SAE 0W-20 offers a significant fuel saving potential, the consequent reduction in emissions contributes to the protection of the environment. HTHS min. 2,6 mPa*s. RAVENOL Eco Synth ECS SAE 0W-20 ensures compliance with the viscosity grade oil even during long duration over the entire change interval.

Application Notes

RAVENOL Eco Synth ECS SAE 0W-20 is a universal fuel-economy engine oil, suitable for all  modern passenger car gasoline and diesel engines where this grade of oil is recommended.

Quality Classifications

RAVENOL Eco Synth ECS SAE 0W-20 is tried and tested for aggregates specifying:

Specifications

ACEA A1/B1, Lizensiert: API SN Resource Conserving / SM Energy Conserving, ILSAC GF-5

Practice and tested in aggregates with filling

Ford WSS-M2C947-A, GM 6094 M, Honda/Acura HTO-6, Chrysler MS-6395, Mitsubishi, Nissan, MAZDA, Suzuki, Toyota

Characteristic


RAVENOL Eco Synth ECS SAE 0W-20 offers:

  • Guaranteed fastest possible lubrication of the engine.
  • High fuel economy (FE) effect due to the base oils and additives used. Low volatilization tendency, thereby lower oil consumption.
  • Provides protection against sludging, coking, varnish and corrosion even under unfavorable operating conditions.
  • No oil-related deposits in combustion chambers in the piston ring zone and on valves.
  • Ensures the function of the hydraulic tappets at all temperatures.
  • Stable engine oil, no NOx oxidation.
  • Good aging behavior, confirmed by the Hot Tube Test.
  • Good soot absorption and dispersion.
  • Neutral towards sealing materials.
RAVENOL Eco Synth ECS SAE 0W-20

Article number: 1111102
Packages:

1 L|1111102-001-01-999

4 L|1111102-004-01-999

5 L|1111102-005-01-999

10 L|1111102-010-01-999

20 L|1111102-020-01-999

60 L|1111102-060-01-999

208 L|1111102-208-01-999

1000 L|1111102-700-01-999

Characteristics Unit Data Audit
Colour braun visual
Density at 20°C kg/m³ 839 EN ISO 12185
Viscosity at –35°C mPa.s 4960 ASTM D5293
Viscosity at 40°C mm²/s 44,31 DIN 51 562
Viscosity at 100°C mm²/s 8,08 DIN 51 562
Viscosity index VI 158 DIN ISO 2909
Flash point (COC) °C 234 DIN ISO 2592
Pourpoint °C - 58 DIN ISO 3016
TBN mg KOH/g 9,5 DIN ISO 3771
Sulphated ash %wt. 0,95 DIN 51 575
Noack Volatility % 8,1 ASTM D5800/b
Viscosity (MRV) at -40°C mPa*s 12340 ASTM D3829

All indicated data are approximate values and are subject to the commercial fluctuations.

All information correspond to the best of our knowledge to the actual situation of the cognitions and our development. Subject to alterations. All references made to DIN-norms are only for the description of the goods. There is no guarantee. In case there will be any problems please contact the technical service.

23.03.2016
