- Certificate / Product Information -

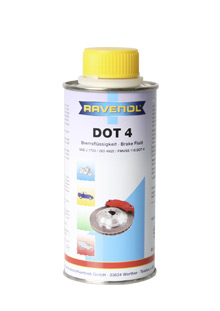

RAVENOL DOT 4

RAVENOL DOT 4 is a brake fluid for the use in all vehicles with optimum ABS characteristics. There is a chemical stability and it is provided with additives which save the best lubrication efficiency.

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J1703, ISO 4925 and the safety regulations FMVSS 116 DOT3 and DOT4 from the United States of America are exceeded.

Application Notes

RAVENOL DOT 4 can be used in all vehicles for which the DOT 4 specification for brake fluids is required. It is suitable for all hydraulic brake systems with synthetic fluids.

RAVENOL DOT 4 is miscible with all known brake fluids of the same specification.

Quality Classifications

Specifications

SAE J1704, ISO 4925, FMVSS 116 DOT4

Characteristic

RAVENOL DOT 4  offers:

  • optimum ABS characteristics.
  • chemical stability.
  • best lubrication efficiency.
  • neutral behaviour regarding brake parts.
  • low viscosity at low temperatures.
  • miscible with all brake fluids of the same specifications.
RAVENOL DOT 4

Article number: 1350601
Packages:

250 ml|1350601-250-05-000

500 ml|1350601-500-05-000

1 L|1350601-001-01-000

208 L|1350601-208-01-000

Characteristics Unit Data Audit
Boiling point °C min. 260 ISO 4925
wet boiling point °C min. 165 ISO 4925
Viscosity at -40°C mPa*s max. 1500 DIN EN ISO 3104

All indicated data are approximate values and are subject to the commercial fluctuations.

PDF-Download

All information correspond to the best of our knowledge to the actual situation of the cognitions and our development. Subject to alterations. All references made to DIN-norms are only for the description of the goods. There is no guarantee. In case there will be any problems please contact the technical service.

24.03.2016
