- Certificate / Product Information -
RAVENOL CVT Fluid
RAVENOL CVT Fluid is a fully synthetic ATF for the latest generation of CVT transmission.
RAVENOL CVT Fluid guarantees an optimum of power transmission.
RAVENOL CVT Fluid is based on fully synthetic oil (PAO) with a special additive and inhibition to ensure the proper operation of the automatic transmission.
Application Notes
RAVENOL CVT Fluid was developed for use in CVT transmission (Steel Belt Continuously Variable Transmission).
RAVENOL CVT Fluid ensures a stable viscosity under high mechanical stress in the transmission elements (push belt).
Quality Classifications
RAVENOL CVT Fluid corresponds to:
Practice and tested in aggregates with filling
BMW CVT EZL 799A, Ford EU WSS-M2C928-A, Focus C-Max CFT23, Ford USA WSS-M2C933-A, XT-7-QCFT Freestyle, Five Hundred CFT30, Honda CVT Fluid 08200-9006, HMMF Ultra Fluid 08260-99904, 08260-99907, MB 236.20 A 0019894603, Mazda TFF CVT Fluid TC JWS3320 K020-W0-051W, Nissan CVT Fluid NS-1, KLE50 00002, KLE50 00004, Opel/GM 1940713, Subaru i-CVT Fluid K0415-YA090, Suzuki S-CVT 99000-22801-000, Toyota CVT Fluid TC 08886-02105, VW/AUDI G052180A1/A2/A6, TL 52180, VW G 052 516 A2, Mini Cooper CVT
Characteristic
RAVENOL CVT Fluid offers:
- Very good lubricating ability even at low temperatures in winter
- A high, stable viscosity index
- Very low pour point
- Very good oxidation stability
- Protection against corrosion and foam formation
- Good balanced coefficient of friction
- Neutral behaviour towards sealing materials
- Neutral behaviour by inhibition to non-ferrous metals

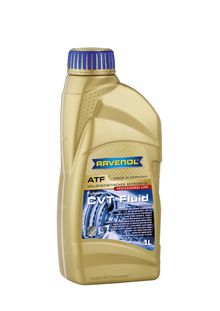

![RAVENOL CVT Fluid RAVENOL CVT Fluid](../../../../../../../typo3temp/pics/5cec9cf679.jpg)
Article number: 1211110
Packages:
1 L|1211110-001-01-999
4 L|1211110-004-01-999
10 L|1211110-010-01-999
20 L|1211110-020-01-999
60 L|1211110-060-01-999
208 L|1211110-208-01-999
1000 L|1211110-001-06-999
Characteristics | Unit | Data | Audit |
---|---|---|---|
Colour | braun | - | |
Density at 15°C | kg/m³ | 850 | EN ISO 12185 |
Pourpoint | °C | -50 | DIN ISO 3016 |
All indicated data are approximate values and are subject to the commercial fluctuations.
All information correspond to the best of our knowledge to the actual situation of the cognitions and our development. Subject to alterations. All references made to DIN-norms are only for the description of the goods. There is no guarantee. In case there will be any problems please contact the technical service.
23.03.2016Ravensberger Schmierstoffvertrieb GmbH
