- Certificate / Product Information -
RAVENOL CATOEL TO-4 SAE 40
RAVENOL CATOEL TO-4 SAE 40 is a special transmission oil developed specifically to meet the stringent requirements of the Caterpillar TO-4 specification. It ensures maximum wear protection in different gears, like side drives and differentials optimized friction coefficient in the power-shift transmissions, wet brakes and clutches and provides maximum service life of the units.
Application Notes
RAVENOL CATOEL TO-4 SAE 40 is formulated to meet the stringent Caterpillar TO-4 specification, and is suitable for use in transmissions, final drives, hydraulic systems, wet brakes and clutches that require this specification of lubricant.
Quality Classifications
Specifications
API CF
Practice and tested in aggregates with filling
Caterpillar TO-4, Allison C-4, Komatsu Micro Clutch, Eaton Fuller, ZF TE-ML 03C
Characteristic
RAVENOL CATOEL TO-4 SAE 40 offers:
- Exceptional wear protection
- High oxidation stability
- Excellent viscosity-temperature behavior
- Optimizes maximum life span of components

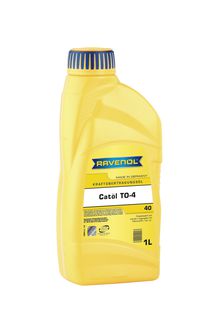

![RAVENOL CATOEL TO-4 SAE 40 RAVENOL CATOEL TO-4 SAE 40](../../../../../../../typo3temp/pics/199dfd7f43.jpg)
Article number: 1310614
Packages:
1 L|1310614-001-01-999
4 L|1310614-004-01-999
10 L|1310614-010-01-999
20 L|1310614-020-01-999
60 L|1310614-060-01-999
1000 L|1310614-700-01-999
Characteristics | Unit | Data | Audit |
---|---|---|---|
Colour | yellow brown | visual | |
Density at 20°C | kg/m³ | 893 | EN ISO 12185 |
Viscosity at 40°C | mm²/s | 134,0 | DIN 51 562 |
Viscosity at 100°C | mm²/s | 13,6 | DIN 51 562 |
Viscosity index VI | 96 | DIN ISO 2909 | |
Flash point (COC) | °C | 270 | DIN ISO 2592 |
Pourpoint | °C | -21 | DIN ISO 3016 |
All indicated data are approximate values and are subject to the commercial fluctuations.
All information correspond to the best of our knowledge to the actual situation of the cognitions and our development. Subject to alterations. All references made to DIN-norms are only for the description of the goods. There is no guarantee. In case there will be any problems please contact the technical service.
