- Certificate / Product Information -
RAVENOL Automatik-Getriebe-Oel Dexron F III
RAVENOL ATF Dexron F III is high performance semi synthetic ATF (Automatic Transmission Fluid).
RAVENOL ATF Dexron F III is designed with high performance base oil with special additives and inhibition to ensure the proper operation of the automatic transmission.
Application Notes
RAVENOL ATF Dexron F III was developed for use in automatic transmissions with hydraulic steering systems, converters and transmissions.
RAVENOL ATF Dexron F III is especially suitable for use in transmissions with ATF Dexron F III specification.
RAVENOL ATF Dexron F III is not mixable with other ATF brands.
Quality Classifications
Specifications
GM DEXRON III F-30140
Approvals
MB-Approval 236.1, MB-Approval 236.5, MAN 339 Typ V-1, MAN 339 Typ Z-1 (Alt: MAN 339 Typ F), ZF TE-ML 04D, 14A
Practice and tested in aggregates with filling
ZF TE-ML 05L, 02F, 03D, 17C, Ford MERCON M-940717, Allison C4, Cat-TO-2, Voith, Nissan
Characteristic
RAVENOL ATF Dexron F III H offers:
- High and stable viscosity index
- Very low flow point
- Excellent oxidation stability
- Extensive protection against wear, corrosion and foaming
- Well tuned friction properties
- Neutral behavior towards sealing materials
- Neutral behavior by inhibition towards non-ferrous metals

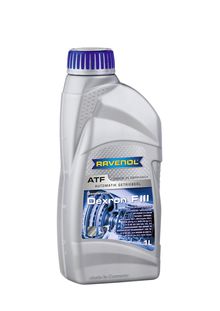

![RAVENOL Automatik-Getriebe-Oel Dexron F III RAVENOL Automatik-Getriebe-Oel Dexron F III](../../../../../../../typo3temp/pics/5106a3808c.jpg)
Article number: 1213104
Packages:
1 L|1213104-001-01-999
4 L|1213104-004-01-999
10 L|1213104-010-01-999
20 L|1213104-020-01-999
60 L|1213104-060-01-999
208 L|1213104-208-01-999
1000 L|1213104-001-06-999
Characteristics | Unit | Data | Audit |
---|---|---|---|
Colour | rot | visual | |
Density at 20°C | kg/m³ | 857 | EN ISO 12185 |
Viscosity at 40°C | mm²/s | 35,90 | DIN 51562 |
Viscosity at 100°C | mm²/s | 7,96 | DIN 51562 |
Viscosity index VI | 204 | DIN ISO 2909 | |
Flash point (COC) | °C | 227 | DIN ISO 2592 |
Pourpoint | °C | -48 | DIN ISO 3016 |
All indicated data are approximate values and are subject to the commercial fluctuations.
All information correspond to the best of our knowledge to the actual situation of the cognitions and our development. Subject to alterations. All references made to DIN-norms are only for the description of the goods. There is no guarantee. In case there will be any problems please contact the technical service.
