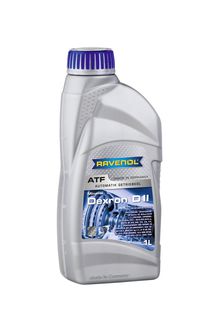

RAVENOL ATF Dexron D II

RAVENOL ATF Dexron D II is a first class transmission fluid for automatic transmissions of all vehicles and working machines on the basis of high refined mineral oils with a corresponding additive treatment.



Application Notes


RAVENOL ATF Dexron D II was developed for the use in automatic transmissions, hydro steering mechanisms, converters and power transmissions and can be used as a universal ATF (Automatic-Transmission-Fluid) for all vehicles and working machines.

Quality Classifications


Specifications

GM Dexron®-IID, Allison C3/C4

Approvals

MB-Approval 236.7, ZF TE-ML 03D, 04D, 11A, 14A, 17C, VOITH H55.6335.xx

Practice and tested in aggregates with filling

MB 236.6, MAN 339 Typ Z-1, ZF TE-ML 05L, Ford SQM-9010B, Ford M2C-138 CJ, 166H, 185A, Cat-TO-2, MERCON, RENK DOROMAT, CVT

Characteristic


RAVENOL ATF Dexron D II offers:

  • protection against corrosion, sludge and sticking
  • an excellent and very shear stable viscosity temperature behaviour
  • no problems concerning very low respectively very high temperatures
  • an excellent high thermal capacity
  • free of foam even under hardest loads
  • neutral behaviour against sealing materials
  • mixable and compatible with all kinds of ATF
RAVENOL ATF Dexron D II

Article number: 1213102
Packages:

1 L|1213102-001-01-999

4 L|1213102-004-01-999

10 L|1213102-010-01-999

20 L|1213102-020-01-999

60 L|1213102-060-01-999

208 L|1213102-208-01-999

1000 L|1213102-001-06-999

Characteristics Unit Data Audit
Colour rot visual
Density at 20°C kg/m³ 866 EN ISO 12185
Viscosity at 40°C mm²/s 35,0 DIN 51 562
Viscosity at 100°C mm²/s 7,2 DIN 51 562
Viscosity index VI 174 DIN ISO 2909
Flash point (COC) °C 210 DIN ISO 2592
Pourpoint °C -39 DIN ISO 3016

All indicated data are approximate values and are subject to the commercial fluctuations.

PDF-Download

All information correspond to the best of our knowledge to the actual situation of the cognitions and our development. Subject to alterations. All references made to DIN-norms are only for the description of the goods. There is no guarantee. In case there will be any problems please contact the technical service.

23.03.2016
