- Certificate / Product Information -

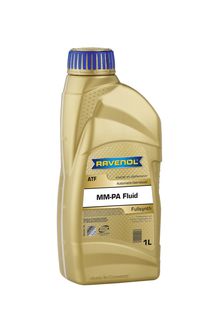

RAVENOL ATF MM-PA Fluid
RAVENOL ATF MM-PA Fluid is a fully synthetic automatic transmission fluid based on PAO with special additives and inhibition what grant excellent function of the automatc gear.
Due to its special formulation the properties of RAVENOL ATF MM-PA Fluid are crucial. We assure an excellent cold stability.
Application Notes
RAVENOL ATF MM-PA Fluid is a special fluid for use in automatic transmissions of Mitsubishi V5AWF.
Quality Classifications
RAVENOL ATF MM-PA Fluid is tried and tested for aggregates specifying:
Specifications
Mitsubishi V5AWF, Mitsubishi 4030401, Mitsubishi DIA QUEEN ATF-PA
Characteristic
RAVENOL ATF MM-PA Fluid offers:
- Extremely low pour point
- Improved viscosity and coefficient of friction behaviour
- A very good protection against consumption
- Excellent thermal stability
- Improved EP-characteristics
- A good foaming behaviour
- Neutral behaviour towards sealing materials
- Reliable protection against corrosion
Article number: 1211126
Packages:
1 L|1211126-001-01-999
4 L|1211126-004-01-999
10 L|1211126-010-01-999
20 L|1211126-020-01-999
60 L|1211126-060-01-999
208 L|1211126-208-01-999
| Characteristics | Unit | Data | Audit |
|---|---|---|---|
| Colour | rot | visual | |
| Density at 20°C | kg/m³ | 850 | EN ISO 20185 |
| Pourpoint | °C | -53 | DIN ISO 3016 |
All indicated data are approximate values and are subject to the commercial fluctuations.
All information correspond to the best of our knowledge to the actual situation of the cognitions and our development. Subject to alterations. All references made to DIN-norms are only for the description of the goods. There is no guarantee. In case there will be any problems please contact the technical service.
23.03.2016Ravensberger Schmierstoffvertrieb GmbH
