- Certificate / Product Information -
RAVENOL ATF FZ
RAVENOL ATF FZ is a Full Synth. Low Viscosity ATF (Automatic Transmission Fluid) especially for Mazda 6-Stroke transmission FW6A-EL und FW6AX-EL with SKYACTIV technology. It guarantees in any mode for maximum wear protection.
Application Notes
RAVENOL ATF FZ is for use in special automatic transmission of Mazda 6-Stroke transmission FW6A-EL und FW6AX-EL with SKYACTIV technology.
Quality Classifications
Practice and tested in aggregates with filling
Mazda ATF FZ, Mazda 0000-FZ-113E-01, Mazda 8300-77-246
Characteristic
RAVENOL ATF FZ offers:
- Very good lubricating ability even at low temperatures in winter
- A high, stable viscosity index
- Very good oxidation stability
- Protection against corrosion and foam formation
- Good balanced coefficient of friction
- A high thermal and oxidative stability
- An excellent cooling capacity.
· RAVENOL special transmission fluid is special development for special gear and cannot be selected on the basis of technical parameters (viscosity, etc.). Therefore the decision was made not to give technical data.
· Please note: RAVENOL special transmission fluid is exclusively to apply under the original number, as indicated in the product information. Not sure of the correct transmission fluid, you can ask your garage or the car dealer with respect to the original OEM gear type and number or consult our advisers. It must be specified the VIN code (Vehicle Identification Number) of your vehicle.
· Misapplication of RAVENOL special transmission fluid can lead to malfunction of the transmission shifting problems, increased fuel consumption, unwanted slip behavior, etc. cause and cause the failure of the transmission.
· Ravensberger Schmierstoffvertrieb GmbH does not liable for transmission failures in case of wrong selection of RAVENOL special transmission fluid.

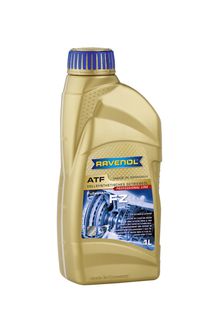

![RAVENOL ATF FZ RAVENOL ATF FZ](../../../../../../../typo3temp/pics/9190c77921.jpg)
Article number: 1211130
Packages:
1 L|1211130-001-01-999
4 L|1211130-004-01-999
10 L|1211130-010-01-999
20 L|1211130-020-01-999
60 L|1211130-060-01-999
208 L|1211130-208-01-999
1000 L|1211130-001-06-999
Characteristics | Unit | Data | Audit |
---|---|---|---|
Colour | blue | visual | |
Density at 20°C | kg/m³ | 837 | EN ISO 12185 |
Pourpoint | °C | <-50 | DIN ISO 3016 |
All indicated data are approximate values and are subject to the commercial fluctuations.
All information correspond to the best of our knowledge to the actual situation of the cognitions and our development. Subject to alterations. All references made to DIN-norms are only for the description of the goods. There is no guarantee. In case there will be any problems please contact the technical service.
