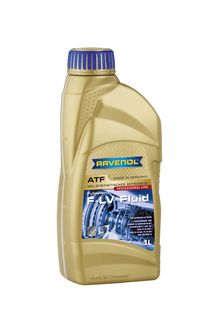

RAVENOL ATF F-LV Fluid
RAVENOL ATF F-LV Fluid is fully synthetic ATF based on PAO with special additives and inhibition, which ensure the proper function of automatic transmission.
RAVENOL ATF F-LV Fluid is ATF (Automatic-Transmission-Fluid) for the latest generation of Ford automatic transmissions. It guarantees a high wear protection in all operating conditions. RAVENOL ATF F-LV Fluid has red colour.
Application Notes
RAVENOL ATF F-LV Fluid is suitable for use in Ford automatic transmissions 4F27E from 2008 and 4R75W, 5R110W, 6R80, 6F35, 6F50, ECVT from 2009.
Note the original part number of manufacturer!
Quality Classifications
RAVENOL ATF F-LV Fluid can replace following Automatic Transmission Fluids of Ford AG:
Practice and tested in aggregates with filling
FORD XT-10-QLVC, FORD Mercon LV, Ford WSS-M2C-938A, Motorcraft XT-10 DLV, Motorcraft XT-10-QLV
Characteristic
RAVENOL ATF F-LV Fluid offers:
· Very good lubricity also by low temperatures in winter
· High, stable viscosity index
· Very good oxidation stability
· Excellent wear, corrosion and foaming protection
· Excellent friction constant
· High thermal and oxidative stability
· Excellent cooling capacity
![RAVENOL ATF F-LV Fluid RAVENOL ATF F-LV Fluid](../../../../../../../typo3temp/pics/e58eeb81d4.jpg)
Article number: 1211120
Packages:
1L|1211120-001-01-999
4L|1211120-004-01-999
10L|1211120-010-01-999
20L|1211120-020-01-999
60L|1211120-060-01-888
208L|1211120-208-01-888
Characteristics | Unit | Data | Audit |
---|---|---|---|
Colour | rot | - | |
Density at 20°C | kg/m³ | 845 | EN ISO 12185 |
Pourpoint | °C | -54 | DIN ISO 3016 |
All indicated data are approximate values and are subject to the commercial fluctuations.
All information correspond to the best of our knowledge to the actual situation of the cognitions and our development. Subject to alterations. All references made to DIN-norms are only for the description of the goods. There is no guarantee. In case there will be any problems please contact the technical service.
