- Certificate / Product Information -
RAVENOL ATF Dexron II E
RAVENOL ATF Dexron II E is high performance fully synthetic automatic transmission oil ATF for use in torque converter transmission and power shift transmission of vehicles with specification GM Dexron II E, Ford Mercon and Allison C-4.
Application Notes
RAVENOL ATF Dexron II E is developed for use in automatic transmission and torque converter transmission and power shift transmission with required specification.
RAVENOL ATF Dexron II E is recommended if ATF Type Dexron II E is to be used according to manufacturer’s specification.
Quality Classifications
RAVENOL ATF Dexron II E is approved and corresponds to:
Specifications
GM Dexron II E, Ford Mercon
Approvals
Voith 55.6336.3x Extended Drain (G1363), MB 236.8, Allison C4-32652009 (ATF II E)
Practice and tested in aggregates with filling
MB 236.5, MAN 339 Typ Z-2, MAN 339 Typ V-2, ZF TE-ML 04D, 09X, 14B, 16L, Cat. TO-2
Characteristic
RAVENOL ATF Dexron II E offers:
- reliable protection against wear, sludge, adhesion and corrosion
- a very shear stable viscosity-temperature behavior
- can be used both at very low and very high temperatures
- an extremely high thermal load
- no foaming, even under the heaviest loads
- compatibility with sealing materials

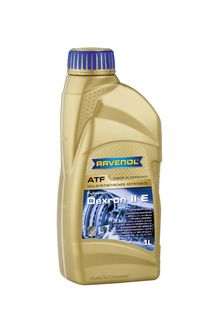

![RAVENOL ATF Dexron II E RAVENOL ATF Dexron II E](../../../../../../../typo3temp/pics/0c7266eb3f.jpg)
Article number: 1211103
Packages:
1L|1211103-001-01-999
4L|1211103-004-01-999
10L|1211103-010-01-999
20L|1211103-020-01-999
60L|1211103-060-01-888
208L|1211103-208-01-888
1000L|1211103-001-06-999
Characteristics | Unit | Data | Audit |
---|---|---|---|
Colour | rot | visual | |
Density at 20°C | kg/m³ | 832 | EN ISO 12185 |
Viscosity at 40°C | mm²/s | 32 | DIN 51 562 |
Viscosity at 100°C | mm²/s | 7,5 | DIN 51 562 |
Flash point (COC) | °C | 203 | DIN ISO 2592 |
Pourpoint | °C | -51 | DIN ISO 3016 |
All indicated data are approximate values and are subject to the commercial fluctuations.
All information correspond to the best of our knowledge to the actual situation of the cognitions and our development. Subject to alterations. All references made to DIN-norms are only for the description of the goods. There is no guarantee. In case there will be any problems please contact the technical service.
