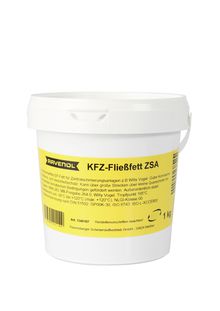

RAVENOL KFZ-Fließfett ZSA

RAVENOL KFZ-Fließfett ZSA is a lithium saponified EP grease for mobile central lubricating equipment.

Application Notes

RAVENOL KFZ-Fließfett ZSA is recommended by Willy Vogel, Mercedes-Benz and MAN for central lubricating equipment.

Quality Classifications

RAVENOL KFZ-Fließfett ZSA has been approved according to MAN 283 Li-P 00/000 and MB 264.0. It has been approved by Willy Vogel AG for the use in VOGEL FF ZSA (maximum distributor connected load at 20 m main line length 10 cm3, can be increased to 20 cm3 below 12 m main line length. Limitation of use - 20°C).

Specifications

DIN 51 502: GP00K-30, ISO 6743 Part 9: ISO-L-XCCEB00

Approvals

MAN 283 Li-P 00/000, MB-Approval 264.0, Willy Vogel AG for the use in VOGEL FF ZSA (maximum distributor connected load at 20 m main line length 10 cm³, can be increased to 20 cm³ below 12 m main line length. Limitation of use - 20°C)

Characteristic

RAVENOL KFZ-Fließfett ZSA is characterised by the following:

  • a very good thermic stability
  • a very good adhesion on metalic surfaces
  • an excellent pump output, also at low temperatures
  • a very good corrosion and oxidation protection
  • an extreme shear stability
  • can be transported in case of changing climatical conditions over long distances and small sections.

RAVENOL KFZ-Fließfett ZSA

Article number: 1340107
Packages:

1 kg|1340107-001-03-000

5 kg|1340107-005-03-000

10 kg|1340107-010-03-000

15 kg|1340107-015-03-000

25 kg|1340107-025-03-000

180 kg|1340107-180-03-000

Characteristics Unit Data Audit
Colour green visual
Thickener Lithium Complex Soap -
NLGI-Class 00 DIN 51 818
DIN-Product-Classification GP00K-30 DIN 51 502
ISO-Product-Classification ISO-L-XCCEB00 ISO 6743 P.9
Working Temperature °C -30 /+120 DIN 51 825
Short Term up to °C 120 -
Worked Penetration 60 strokes mm/10 bei 25°C 400-430 ISO 2137
Corrosion (SKF Emcor dist. Water) Corr. Degree 1 DIN 51 802
Dropping Point °C 185 DIN ISO 2176
Copper Corrosion (24h/120°C) 1 DIN 51 811
Water Resistance (3h/90°C) °C 1-90 DIN 51 807 P.1
VKA Pressure Carrying Capacity N lower 2000 DIN 51 350 P.4
Kinematic Viscosity (Base Oil) mm²/s bei 40°C 40 DIN 51562-1

All indicated data are approximate values and are subject to the commercial fluctuations.

PDF-Download

All information correspond to the best of our knowledge to the actual situation of the cognitions and our development. Subject to alterations. All references made to DIN-norms are only for the description of the goods. There is no guarantee. In case there will be any problems please contact the technical service.

23.03.2016
