- Certificate / Product Information -

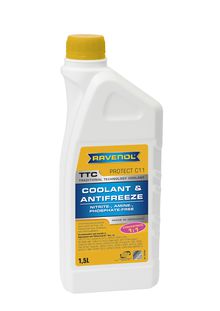

RAVENOL TTC - Protect C11 Concentrate

NITRITE- AMINE- PHOSPHATE- FREE

RAVENOL TTC Traditional Technology Coolant Concentrate is an eco-friendly 1.2- Ethanediol (monoethylene glycol) based nitrite, amine and phosphate-free coolant for cooling circuits in combustion engines which provides maintenance-free corrosion and frost protection. The product is formulated as a long-term coolant based on a proven inhibitor development.

It is no longer just the anti-freeze effect (which automatically exists in an ethylene-glycol based product) which is critical for the quality of a coolant, but also the rust protection.

Therefore automakers subject coolants to long corrosion and cavitation tests.

RAVENOL TTC Traditional Technology Coolant Concentrate protects the cooling system from corrosion, frost, and in the summer from overheating.

Application Notes

RAVENOL TTC Traditional Technology Coolant Concentrate with frost and rust protection. Use according to the mixing chart. Follow manufacturer’s recommendations.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Clean cooling system, check for leaks, flush.

Mix RAVENOL TTC Traditional Technology Coolant Concentrate with fresh water (per mixing chart) and add. Allow engine and heater to warm up, add coolant to fill level.

Mixing chart:

Antifreeze protection to approx.          Parts antifreeze         Parts water

           - 12°C         25 %                     75 %

           - 20°C         35 %     65 %

           - 37°C         50 %     50 %



Quality Classifications

RAVENOL TTC Traditional Technology Coolant Concentrate is tried and tested for aggregates specifying:

Specifications

VW TL 774-C (acc. to G11 quality), BS 6580 (GB), O Norm V 5123 (Österreich), JIS K 2234 (Japan), CUNA NC 956-16 (Italien), AFNOR R15-601 (Frankreich), SAE J1034, UNE 25-361 (Spanien), ASTM D 4985, ASTM D 1384, ASTM D 2570, ASTM D 2809, FORD WSS-M97B51-A, FIAT 9.55523, FIAT PARAFLU 11, IVECO 18-1830, ASTM D 3306 Type 1, ASTM D 6210 Type 1-FF, CHRYSLER MS 7170

Characteristic

RAVENOL TTC Traditional Technology Coolant Concentrate offers:

  • Excellent for light metal engines
  • Good reserve alkalinity
  • High-quality corrosion additives for optimal corrosion protection
  • Elastomer compatible with elastomers used in automotive radiators

RAVENOL TTC - Protect C11 Concentrate

Article number: 1410100
Packages:

1,5 L|1410100-150-01-999

5 L|1410100-005-01-999

10 L|1410100-010-01-999

20 L|1410100-020-01-999

60 L|1410100-060-01-999

208 L|1410100-208-01-999

1000 L|1410100-001-06-999

Characteristics Unit Data Audit
Colour yellow-green fluorescent visual
Density at 20°C kg/m³ 1130 EN ISO 12185
Flash point (COC) °C 141 DIN 51 758
Boiling point °C 155 ASTM D 1120
pH-value (50 %, 20°C) 7,8 ASTM D 1287
Reserve alkalinity ml 0,1 n HCL 20 ASTM D 1121
Water content Gew.-% 5 ASTM D 1123
Freezing point (50 %-Lösung) °C -37 ASTM D 1177

All indicated data are approximate values and are subject to the commercial fluctuations.

All information correspond to the best of our knowledge to the actual situation of the cognitions and our development. Subject to alterations. All references made to DIN-norms are only for the description of the goods. There is no guarantee. In case there will be any problems please contact the technical service.
