- Certificate / Product Information -

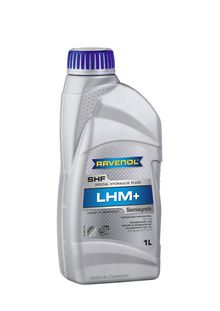

RAVENOL LHM+ Fluid
RAVENOL LHM+ FLUID is special semisynthetic hydraulic fluid especially designed for use in vehicles of the PSA group (Citroen, Peugeot).Due to its special formulation RAVENOL+ LHM FLUID has significantly improved low temperature viscosity and fulfils the PSA approval specification.
Application Notes
RAVENOL LHM+ FLUID is used in vehicles with appropriately marked fluid reservoir for the hydraulic operation or support of braking, steering and suspension functions.
RAVENOL + LHM FLUID is miscible with earlier LHM fluids.
Quality Classifications
Specifications
ISO 7308, DIN 51 524, Part 2
Practice and tested in aggregates with filling
PSA B71 2710
Characteristic
RAVENOL LHM+ FLUID offers:
- A low pour point.
- Excellent viscosity behavior at low temperatures.
- An extremely high viscosity index.
- Low viscosity at low temperatures.
- Neutral behavior towards sealing materials.
Article number: 1181110
Packages:
1L|1181110-001-01-999
4L|1181110-004-01-999
10L|1181110-010-01-999
20L|1181110-020-01-999
60L|1181110-060-01-999
208L|1181110-208-01-999
1000L|1181110-001-06-999
| Characteristics | Unit | Data | Audit |
|---|---|---|---|
| Colour | klar,grün | visual | |
| Density at 20°C | kg/m³ | 839 | EN ISO 12185 |
| Viscosity at 40°C | mm²/s | 22,9 | DIN 51 562 |
| Viscosity at 100°C | mm²/s | 6,5 | DIN 51 562 |
| Viscosity index VI | 266 | DIN ISO 2909 | |
| Flash point (COC) | °C | 172 | DIN ISO 2592 |
| Pourpoint | °C | -63 | DIN ISO 3016 |
All indicated data are approximate values and are subject to the commercial fluctuations.
All information correspond to the best of our knowledge to the actual situation of the cognitions and our development. Subject to alterations. All references made to DIN-norms are only for the description of the goods. There is no guarantee. In case there will be any problems please contact the technical service.
23.03.2016Ravensberger Schmierstoffvertrieb GmbH
