RAVENOL Getriebeöl PAO CLP 220

RAVENOL Getriebeöl PAO CLP 220 is premium performance, extreme pressure lubricant designed for enclosed industrial gears and bearings operating under severe load conditions and in wide extremes of
temperature.
RAVENOL Getriebeöl PAO CLP 220 is formulated using PAO synthetic base oils and additive
technologies to deliver excellent wear properties, outstanding extreme temperature performance for extended component and fluid life.
RAVENOL Getriebeöl PAO CLP 220 enhances gear box efficiency over a wide temperature range and can reduce power consumption.



Application Notes

RAVENOL Getriebeöl PAO CLP 220 is recommended for enclosed industrial gear drives and bearings particularly where they are operated under heavy duty conditions such as heavy loading, slow speed, shock loads and in wide extremes of temperature.

The tough oil film of RAVENOL Getriebeöl PAO CLP 220 and low coefficient of friction save energy in gearboxes. The high viscosity index of RAVENOL Getriebeöl PAO CLP 220 means they retain their viscosity at high operating temperatures. This often allows the use of a lower ISO grade than with conventional gear oil resulting in even greater energy savings.

RAVENOL Getriebeöl PAO CLP 220 is designed to combat these conditions and will run cooler while

maintaining a high lubricant film strength. For gearboxes that operate outdoors, RAVENOL Getriebeöl PAO CLP 220 is capable of operating at temperatures as low as -30°C or below.

When converting a gearbox to RAVENOL Getriebeöl PAO CLP 220, it is recommended to be cleaned and flushed first to gain the full benefit of the product.

RAVENOL Getriebeöl PAO CLP 220 is compatible with mineral oils, polyalphaolefin lubricants and most seal materials except natural rubber.

RAVENOL Getriebeöl PAO CLP 220 operates over the temperature range from -30°C to 121°C.

Quality Classifications

RAVENOL Getriebeöl PAO CLP 220 corresponds to:

Specifications

DIN 51 517 Part 3, US Steel 224, Eickhoff Bergbautechnik: Bestätigung für die Verwendung in den Getrieberäumen, Flender Industrial Gear GE787/788- und GA880-Bauteile, Eickhoff Gear, Jahnel Kestermann, AGMA 9005-E02 (EP). David Brown S1.53.101 Typ E, Cincinnati Machine P-74

Characteristic

RAVENOL Getriebeöl PAO CLP 220 offers:

Extends equipment life

• Designed to protect equipment being operated under tough high load conditions

• Improves operating reliability over a wide range of gearbox loads

• Better film strength and extreme pressure properties than the leading global competitor synthetic for    extended gear and bearing life

• Reduces likelihood of seizure, scuffing or spalling of gear teeth and bearings under high load conditions

• Synthetic formulation reduces friction, Energy efficient over a wide temperature range

• Excellent extreme temperature performance protects your equipment in the most extreme temperature conditions

• Wider range of service temperatures with high Viscosity Index (VI) for a wide temperature range

• Protects against water damage provides excellent resistance to rust and copper corrosion

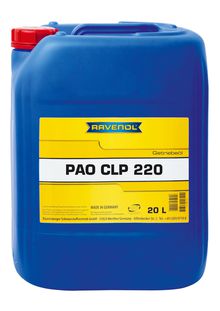

RAVENOL Getriebeöl PAO CLP 220

Article number: 1332209
Packages:

20L|1332209-020-01-000

208L|1332209-208-01-000

Characteristics Unit Data Audit
AGMA-Number 5EP -
Colour hell gelb visual
Density at 20°C kg/m³ 857 EN ISO 12185
Viscosity at 40°C mm²/s 223 DIN 51 562
Viscosity at 100°C mm²/s 26,39 DIN 51 562
Viscosity index VI 151 DIN ISO 2909
Flash point (COC) °C 235 DIN ISO 2592
Pourpoint °C -48 DIN ISO 3016
150.000 cp temperature °C -36 ASTM D2983
Rust check, method A&B 24h bestanden ASTM D665
Corrosion check with copper strips 3h bei 100°C 1b ASTM D130
Timken OK-Last kg 48 ASTM D2782
VKA-weld load kg 250 ASTM D27830
FZG-Test A/8,3/90 damage loading step 14 DIN 51 354

All indicated data are approximate values and are subject to the commercial fluctuations.

All information correspond to the best of our knowledge to the actual situation of the cognitions and our development. Subject to alterations. All references made to DIN-norms are only for the description of the goods. There is no guarantee. In case there will be any problems please contact the technical service.

23.03.2016
