- Certificate / Product Information -

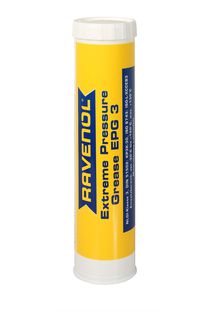

Ravenol Extreme Pressure Grease EPG 3
RAVENOL Extreme Pressure Grease EPG 3 is based on high-quality base oils by lithium soaps (Li-12-hydroxy stearate) as thickener. Due to this they avail of an outstanding work resistance.
RAVENOL Extreme Pressure Grease EPG 3 contains additives to improve the rust and corrosion-preventing behavior.
RAVENOL Extreme Pressure Grease EPG 3 is suitable for most applications.
RAVENOL Extreme Pressure Grease EPG 3 is used as a grease for friction bearings and roller bearings at lubricating points of motor vehicles, equipment, machinery, conveying systems, construction machines etc.
Application Notes
RAVENOL Extreme Pressure Grease EPG 3 is used as a grease for the lubrication of easy loaded antifriction bearings and machine components. It is also suited as multipurpose lubrication grease for vehicles.
Quality Classifications
RAVENOL Extreme Pressure Grease EPG 3 is tried and tested for aggregates specifying:
Specifications
DIN 51 502: KP3K-30, ISO 6743 Part: ISO-L-XCCEB3
Characteristic
RAVENOL Extreme Pressure Grease EPG 3 offers:
- universal use
- an extreme shear stability
- an excellent corrosion protection
- a very good mechanical and chemical stability
- a very good aging resistant
- a good pump output also at low temperatures
Article number: 1340127
Packages:
400 g|1340127-400-04-999
1 Kg|1340127-001-03-999
5 Kg|1340127-005-03-999
10 Kg|1340127-010-03-999
15 Kg|1340127-015-03-999
25 Kg|1340127-025-03-999
180 Kg|1340127-180-03-999
| Characteristics | Unit | Data | Audit |
|---|---|---|---|
| Colour | light brown | visual | |
| Thickener | Lithium Complex Soap | - | |
| NLGI-Class | 3 | DIN 51 818 | |
| DIN-Product-Classification | KP3K-30 | DIN 51 502 | |
| ISO-Product-Classification | ISO-L-XCCEB3 | ISO 6743 P.9 | |
| Working Temperature | °C | -30 / +120 | DIN 51 825 |
| Short Term up to | °C | 130 | - |
| Worked Penetration 60 strokes | mm/10 bei 25°C | 220-250 | ISO 2137 |
| Corrosion (SKF Emcor dist. Water) | Corr. Degree | 1 | DIN 51 802 |
| Dropping Point | °C | >180 | DIN ISO 2176 |
| Copper Corrosion (24h/120°C) | 1 | DIN 51 811 | |
| Water Resistance (3h/90°C) | °C | 1-90 | DIN 51 807 P.1 |
| VKA Pressure Carrying Capacity | N | 2000 bis 2200 | DIN 51 350 P.4 |
| Kinematic Viscosity (Base Oil) | mm²/s bei 40°C | 140 | DIN 51562-1 |
All indicated data are approximate values and are subject to the commercial fluctuations.
All information correspond to the best of our knowledge to the actual situation of the cognitions and our development. Subject to alterations. All references made to DIN-norms are only for the description of the goods. There is no guarantee. In case there will be any problems please contact the technical service.
